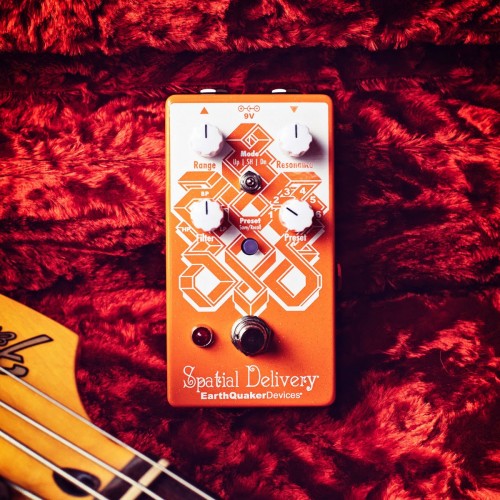

Spatial Delivery V3 EarthQuaker Devices Pedal

Introducing the new and improved Spatial Delivery V3 Envelope Filter! We have enhanced the original Spatial Delivery by adding six preset slots for you to store your preferred settings. Whether it’s dissonant sweeps, rhythmic auto-wah frequencies, oscillating robot gibberish, or any other filtered frequency fun, you can save them all. You can even save the expression jack assignment and recall it in any of the slots with a quick tap of the switch. The LED Save/Recall switch indicates the two available modes for saving your settings confidently on the go.

The Spatial Delivery pedal retains all the features of the original version. It offers three modes – Up Sweep, Down Sweep, and Sample & Hold – with controls for Range, Resonance, and Filter. You can create unique filter sweeps with the Up and Down modes and adjust the Range to modify the sensitivity and reaction time of the envelope, which changes the width of the frequency sweep. In Sample & Hold mode, the filter is controlled by random voltage, with the Range controlling the speed. The filter can be crossfaded between high pass, band pass, and low pass for a diverse range of sounds. The Resonance control allows you to add more body and ring to the filter voice, ranging from zero to the brink of oscillation.

Spatial Delivery EarthQuaker Devices Pedal Features

• Presets: Spatial Delivery boasts six presets and on-the-fly footswitch preset switching, with expression control that can be mapped to different controls and can also be saved as a preset. Saving, recalling and overwriting presets has never been simpler.
• Operating Modes: Spatial Delivery has two operating modes, indicated by the color of the Save/Recall switch LED. In Live Mode, the pedal will operate exactly where the controls are set, and any changes will have no effect on the presets unless saved. In Preset Mode, stored presets are selected using the Preset switch, and the physical settings of the controls will be ignored.
• User-Assignable Expression Control: Use any TRS expression pedal to easily control the Range, Resonance, or Filter controls, allowing for limitless experimentation.

Spatial Delivery EarthQuaker Devices Pedal Controls

• Dimensions: 5 x 2.625 x 2.125 inches
• Current Draw: 75 mA
• Input Impedance: 500 kΩ
• Output Impedance: 100 Ω
• Flexi-Switch® Technology: This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.
• For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.
• For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.
• Since the switching is relay-based, it requires power to pass the signal.
• Power: This device takes a standard 9-volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains, and non-pedal-specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Spatial Delivery EarthQuaker Devices Pedal Warranty

All EarthQuaker Devices pedals come with a limited lifetime warranty. If it breaks, they’ll fix it.
