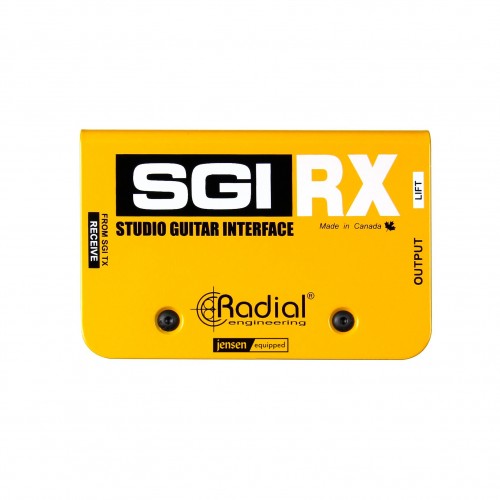

Radial Engineering SGI RX Instrument Line Driver – Receiver Only

The Radial Engineering SGI-RX is a receiver unit designed to convert balanced signals back to unbalanced and deliver them to a guitar amplifier or other unbalanced gear. It ensures the integrity of the signal while maintaining noise-free performance. The SGI-RX is equipped with a Jensen transformer for superior isolation and a flat frequency response.

Product Specifications:

Audio circuit type: Transformer-isolated signal path.

Transformer: Jensen JT-11-YPMC.

Input Impedance: XLR balanced.

Output Impedance: 2.2kΩ (1/4″ unbalanced).

Frequency Response: 10Hz – 40kHz (±0.5dB).

Maximum Output: +8.5dBu, 1% THD+N, unbalanced.

Dynamic Range: 121.4dB.

Total Harmonic Distortion: 0.0013% @ -20dBV, 22Hz to 22kHz.

Intermodulation Distortion: 0.01%, 60Hz/7kHz, 4:1, -20dBV.

Input Connector: XLR balanced.

Output Connector: 1/4″ unbalanced.

Construction: 14-gauge steel chassis & outer shell.

Size (L x W x D): 2.75″ x 4.25″ x 1.75″ (70 x 108 x 44mm).

Weight: 1.5lbs (0.68kg).
