Line 6 DL4 MkII Delay Pedal

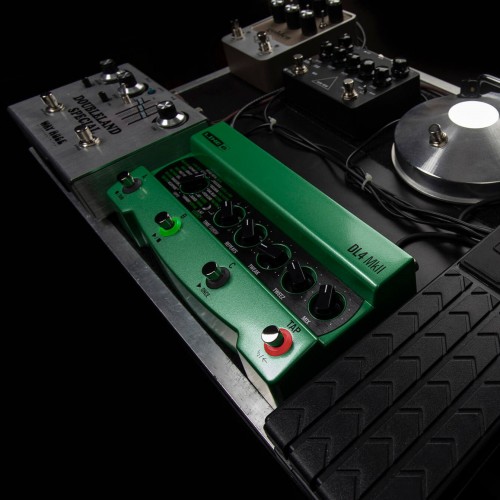

The DL4 MkII Pedal honors the original Line 6 DL4 Delay Modeler, a common fixture on pedalboards around the world, from arena stages and worship platforms to bedroom setups. It pays homage to the well-known little green time machine, featuring the same knob and footswitch layout as its predecessor, along with all of its original sounds and features. However, the MkII surpasses its predecessor with 15 new HX-derived delay models, a selection of captivating reverbs, and 1- and 4-switch loopers with up to 240 seconds of recording time. This recording time can be expanded to several hours using the pedal’s microSD slot.

Line 6 DL4 MkII Delay Pedal Review

You also get an XLR microphone input, comprehensive MIDI connectivity and control, switchable true/buffered/DSP bypass, and an expression pedal input. The Line 6 DL4 MkII Delay Modeler offers everything the original did and more. If you’re looking for a delay stompbox with extensive features and top-notch sound quality, this is the one to get.

Line 6 DL4 MkII Delay Pedal Features

• The 2nd iteration of the venerable DL4 Delay Modeler
• Boasts the same knob and footswitch layout as its predecessor
• Contains all of the sounds of the original pedal, plus 15 modern HX-derived effects and 15 reverbs
• 1- and 4-switch loopers supply up to 240 seconds of recording time
• A microSD card unleashes extended recording time that can be stored across power cycles
• Looper can operate in either mono or stereo, and it can be positioned before or after other effects
• XLR microphone input enables you to loop vocals without resorting to external converters or other devices
• MIDI In and Out/Thru DIN connectors accommodate CC, program change, and other MIDI messages
• Modify your parameters dynamically and select presets remotely
• 3 presets via A, B, and C footswitches, or 6 if you set the Tap switch to toggle between 2 preset banks (A,B, C and D, E, F)
• Stores up to 128 MIDI-selectable presets
• Switchable true/buffered/DSP bypass
• Expression pedal input

Line 6 DL4 MkII Delay Pedal Specs

• Presets: 6 x User, 128 via MIDI
• Effects: 30 x Delay, 15 x Reverb
• Max Delay Time: 4 seconds
• Looping Time: 2 minutes (stereo), 4 minutes (mono), Expandable to several hours with microSD card
• Tap Tempo: Yes
• Inputs: 2 x 1/4″ TS (L/mono, R), 1 x XLR (mic)
• Outputs: 2 x 1/4″ TS (L/mono, R)
• MIDI I/O: 2 x 5-pin DIN (In, Out/Thru), USB
• Other I/O: 1 x 1/4″ (expression/dual footswitch), 1 x MicroSD slot
• USB: 1 x USB-C (Midi, Firmware)
• Bypass Switching: True Bypass, Buffered, DSP, Dry Kill
• Power Source: 9V DC 500mA power supply (included)

What’s in the box of our Line 6 DL4 MkII Delay Pedal?

• Line 6 DL4 MkII Delay Pedal
• Manual/cheat sheet
• Branded box
• Power supply and cable
• USB Cable

Line 6 DL4 MkII Delay Pedal Dimensions

• Dimensions: 9.25 x 4.5 x 2″
• Weight: 2.07 lb
