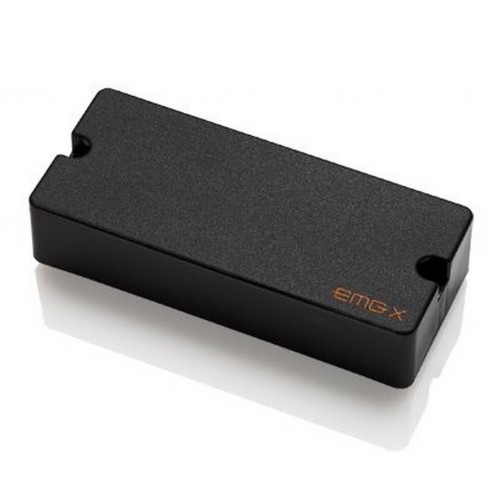

EMG 45J-R 6-String Ceramic Jazz Soapbar Pickup in Reverse J Location

EMG 6 String Ceramic Jazz Pickup in Reverse Location

The EMG 6 String Ceramic Jazz Pickup in Reverse Location is designed for bassists who want to explore a different tonal perspective from their 6-string bass. Encased in a 4.5″ by 1.5″ soapbar black housing, this pickup features a reverse coil orientation, which can offer a unique tonal character compared to standard placements. With ceramic magnets, it delivers a warm, punchy Jazz Bass tone, perfect for bassists looking to add depth and nuance to their sound.

This model benefits from EMG’s solderless installation system, simplifying the upgrade process for musicians. The reverse location of the pickup changes the magnetic field interaction with the strings, potentially offering a different balance across the frequency spectrum, enhancing your bass’s versatility.

Whether you’re in the studio recording or performing live, this EMG pickup in its unique placement provides a fresh way to shape your bass sound.

Key Features

• Designed for 6-string basses
• Reverse coil orientation for unique tonal characteristics
• Ceramic magnets for a warm, rich Jazz Bass tone
• Low noise for professional use
• EMG’s solderless wiring for easy installation

Technical Specifications

Model: 45JRREVJLOCBLK
Logo Color: Silver
Magnet Type: Ceramic
Resonant Frequency (KHz): 4.40
Output Voltage (Finger, Thumb): 2.00
Output Voltage (Thump): 4.50
Output Noise (60 Hz): -101
Output Impedance (Kohm): 10
Current @ 9V (Microamps): 80
Battery Life (Hours): 3000
Maximum Supply (Volts DC): 27
Dimensions: 4.5 inches x 1.5 inches x 0.6 inches
Housing Size: 4.5 inches

What’s Included

Package Includes EMG’s exclusive Solderless Install System:

• 1 25k volume pot
• 1 25k tone pot
• 1 battery bus
• 1 stereo output jack
• 1 pair mounting screws
• 1 pickup cable
• 2 connect cables
• 1 output cable
• 1 battery cable

Disclaimer: The image above may not accurately depict the product and is for reference only. Some variations in appearance may occur.
