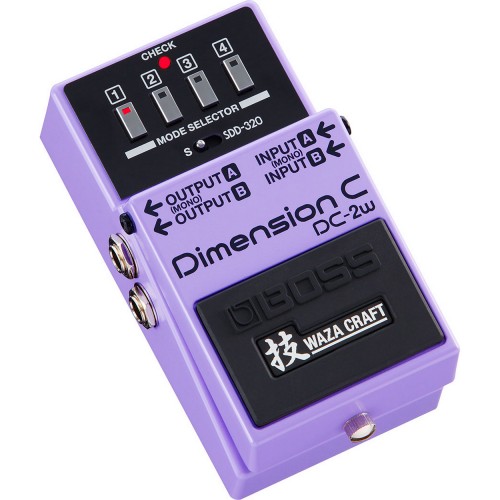

Boss DC-2W Waza Craft Dimension C Spatial Processing Pedal

Add some Space To your Sound with the Boss DC-2W Waza Craft Dimension C Spatial Processing Pedal

The genuine BOSS and Roland Dimension effect is back, and it’s now more versatile than ever! Designed in the premium Waza Craft analog tradition, the DC-2W offers not just a perfect sonic recreation of the original DC-2 Dimension C pedal, but also the legendary SDD-320 Dimension D studio rack effect it was based on. The DC-2W features the same intuitive four-button preset interface as the original ‘80s-era effects, now evolved with electronic switching that unlocks a multitude of sonic variations not available on the vintage units.

Enhance Your Sound With Natural Width and Depth

The vintage Dimension effect is famous for its innovative 3D spatial processing that just makes everything sound a little better. It’s often mistakenly called a chorus effect, but it’s actually not. Though time-based like a chorus, the Dimension’s circuit is quite unique and sophisticated, subtly enhancing the width and depth of the source audio without any prominent modulated movement. The resulting sound is more open and natural, gently enriching any instrument or mix without making it sound overly processed.

Authentic Tones with Modern Refinements

In the Waza Craft tradition, the DC-2W delivers vintage analog tones with modern design refinements for enhanced performance and versatility. Along with the new electronic mode switches, the pedal features a newly designed internal bypass circuit that greatly improves on that found in the original DC-2. In addition, versatile I/O enables the pedal to blend in with any mono or stereo rig, from regular guitar setups to audio interfaces and studio mixing consoles. And like all Waza Craft pedal models, the DC-2W includes a premium buffer circuit for ultra-transparent tone when the pedal is switched off.

The Boss Dc-2 Dimension C: 3d Sound in a Compact Pedal

Introduced in 1985, the DC-2 Dimension C pedal brought the Dimension D’s distinctive spatial effect to the BOSS compact pedal format. While the Dimension D was designed as a studio effect that supported either mono or stereo input sources, the DC-2 was specifically created for mono sources like guitar, and features a modified circuit that produces a Dimension effect with a slightly different tonal flavor.

When S (Standard) mode is selected, the DC-2W delivers the exact sound of the original DC-2 pedal. Despite players trying, pressing multiple buttons on the DC-2 didn’t actually produce any sound variations. Similar to SDD-320 mode, pressing two buttons at once in the DC-2W’s S mode provides access to six different in-between sounds not available on the original DC-2.

Waza Craft: the Art of Superior Tone

Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones using any technology necessary, from old-school analog circuits to high-tech DSP. This enthusiastic spirit continues on with the Waza Craft series, which brings you exceptional tone and touch response through carefully selected analog components, refined circuitry, and meticulous attention to detail. In Japan, Waza is the term for art and technique, and these special edition pedals proudly carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship.

• Premium Waza Craft pedal with all-analog audio circuitry
• Standard mode provides the sound of the original DC-2 Dimension C pedal
• SDD-320 mode authentically reproduces the vintage Roland SDD-320 Dimension D, a legendary studio rack effect heard on countless hit records
• Iconic four-button preset interface, updated with reliable electronic switches and LED status indicators
• Four main sounds in each mode, plus six variations by pressing two switches together (20 total sounds available)
• Premium buffer and enhanced bypass circuitry
• Versatile I/O for integrating with any mono or stereo application, from guitar and bass pedalboards to keyboards and studio mixing
• Made in Japan
• BOSS five-year warranty

SPECIFICATIONS

• Nominal Input Level: -20 dBu
• Input Impedance: 2.2 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or greater
• Bypass: Buffered bypass
• Current Draw: 65 mA (DC 9 V)/ 80 mA (DC 9 V, when High Brightness mode is on)

Indicator

• CHECK indicator (Serves also as battery check indicator)
• MODE SELECTOR [1]–[4] indicators

Modes

• S (Standard)
• SDD-320

Controls

• Pedal switch
• S/SDD-320 switch
• MODE SELECTOR [1]–[4] buttons

Connectors

• INPUT A (MONO) jack: 1/4-inch phone type
• INPUT B jack: 1/4-inch phone type
• OUTPUT A (MONO) jack: 1/4-inch phone type
• OUTPUT B jack: 1/4-inch phone type
• DC IN jack

Power

• Alkaline battery (9 V, 6LR61)
• AC adaptor (PSA series: sold separately)

Expected battery life under continuous use

• Alkaline: Approx. 6 hours
• *These figures will vary depending on the actual conditions of use

Accessories

• Alkaline battery (9 V, 6F21)
• Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTE,” and “Information”)

Options (sold separately)

• AC adaptor: PSA series

Manufacturer: Boss
Model: DC-2W
SKU: I562280-N-3-WHXA
UPC: 761294513521
